Vertical Parallel Cable Joint – CC7

Vertical Parallel Cable Joint - CC7

Vertical Parallel Cable Joint – CC7

SKU: N/A Categories: ,

Description

Product Information:

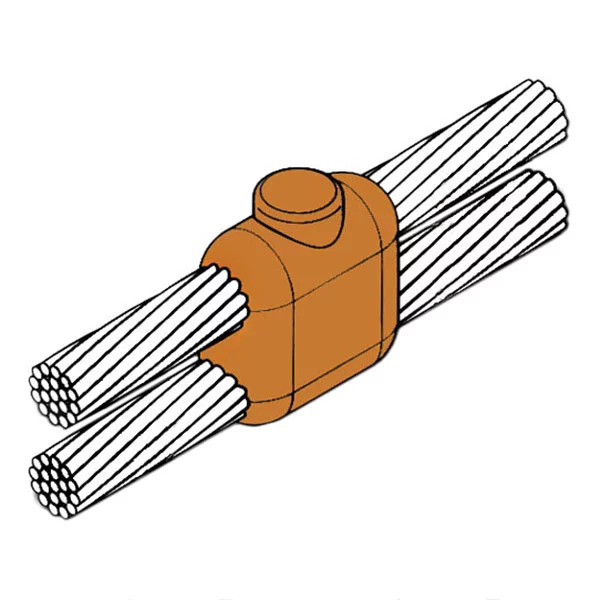

Vertical Parallel Cable Joint- CC7 is a cable-to-cable exothermic welded connection that requires an HCD or HCE Handle Clamp.

The AuraWeld Exothermic Connection is a permanent, zero-maintenance weld solution providing up to 50 years of service life. Unlike pressure-type connections – such as bolts or crimps – AuraWeld welds do not loosen or degrade with time, providing consistent electrical performance without increased resistance. The granular powder of the AuraWeld metal includes copper oxide, aluminium, and flux and is available in standard sizes.

AuraWeld Mould Features

  • High-quality graphite that provides ease of machining and resilience to thermal and mechanical shocks during welding, with heat over 2000ºC.
  • Designed fo

Additional information

A(mm)

10, 10 dila, 120, 150, 16, 185, 240, 25, 300, 35, 50, 70, 8 dila, 95
B(mm)

10 dila, 120, 150, 16, 185, 240, 25, 300, 35, 50, 70, 8 dila, 95
Weld Metal

#025, #032, #045, #065, #090, #115, #150, #200, #250, 2*#0250, 2*#150, 2*#200, 2*#250, 2*200, 25, 3*#250, 3*250, 32
HANDLE CLAMP

HCD, HCE
MOULD

MDCC710S10S, MDCC7120120, MDCC7120150, MDCC712050, MDCC712070, MDCC7150120, MDCC715070, MDCC715095, MDCC71616, MDCC7185120, MDCC718595, MDCC7240120, MDCC72525, MDCC73535, MDCC75025, MDCC75035, MDCC75050, MDCC77025, MDCC77035, MDCC77050, MDCC77070, MDCC78S8S, MDCC79535, MDCC79550, MDCC79570, MDCC79595, MECC7150150, MECC7185150, MECC7185185, MECC7240150, MECC7240185, MECC7240240, MECC7300150, MECC7300185, MECC7300240, MECC7300300
